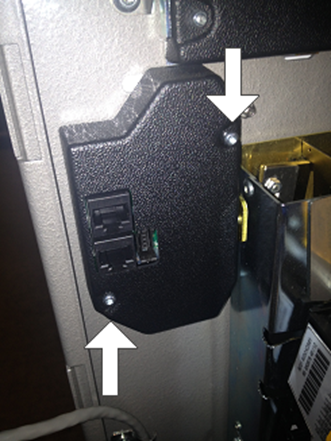

Unplug the two Ethernet cables from the board. Then remove the two torque screws that hold the cover in place. Remove the cover.

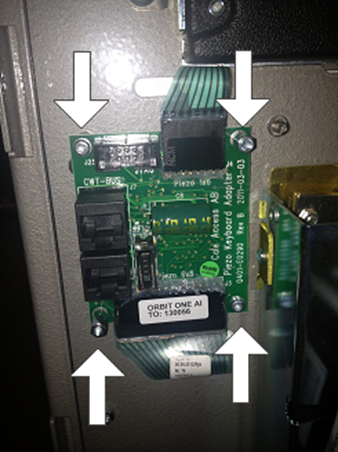

Next, Unplug the two ribbon cables from the board and remove the two torque screws and the two studs.
Remove the old board and install the new board. Install the two torque screws and the two studs, the plug the two ribbon cables into the new board.
Install the cover and the two torque screws that hold the cover in place. Last, plug the two Ethernet cables into the board.
