CWT - Troubleshooting - CWT S4 Coin Jams in Antipin

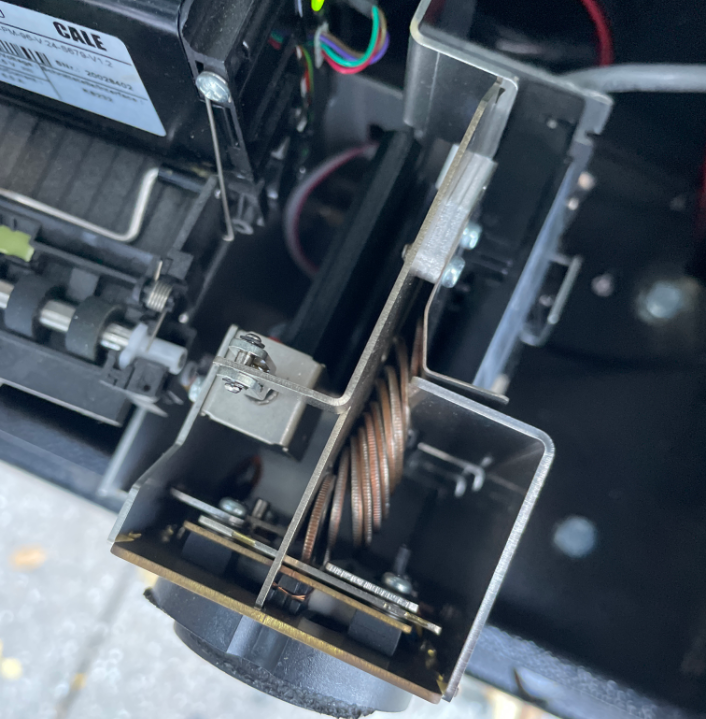

Coins jams on the S4 coin system antipin track above the coin selector can be caused by the upper cabinet door putting too much pressure on the antipin and coin assemblies when the door is closed.  We have seen this with the BA coin system where the chassis is too tight which binds the antipin and limits the free movement of the antipin assembly:

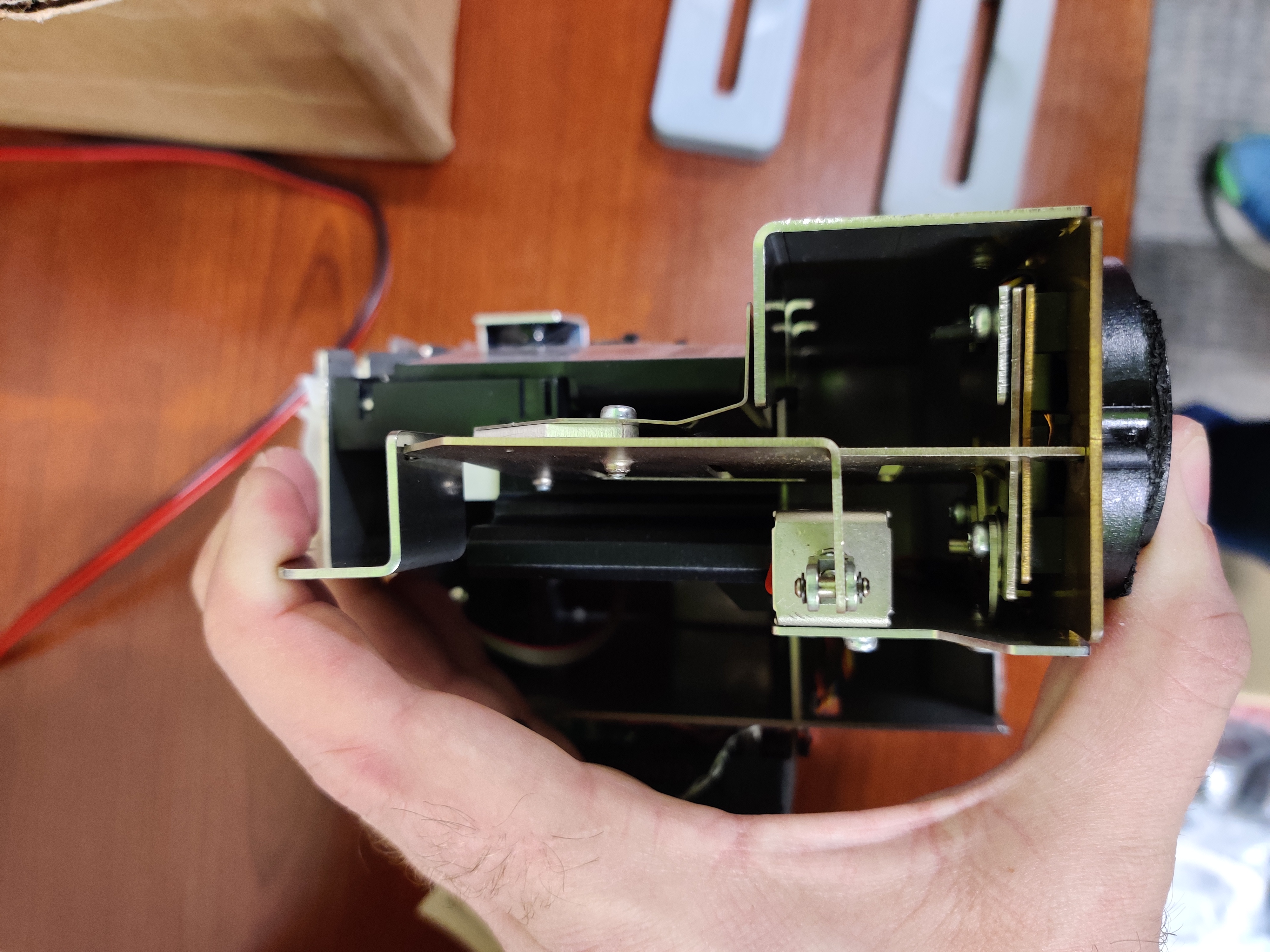

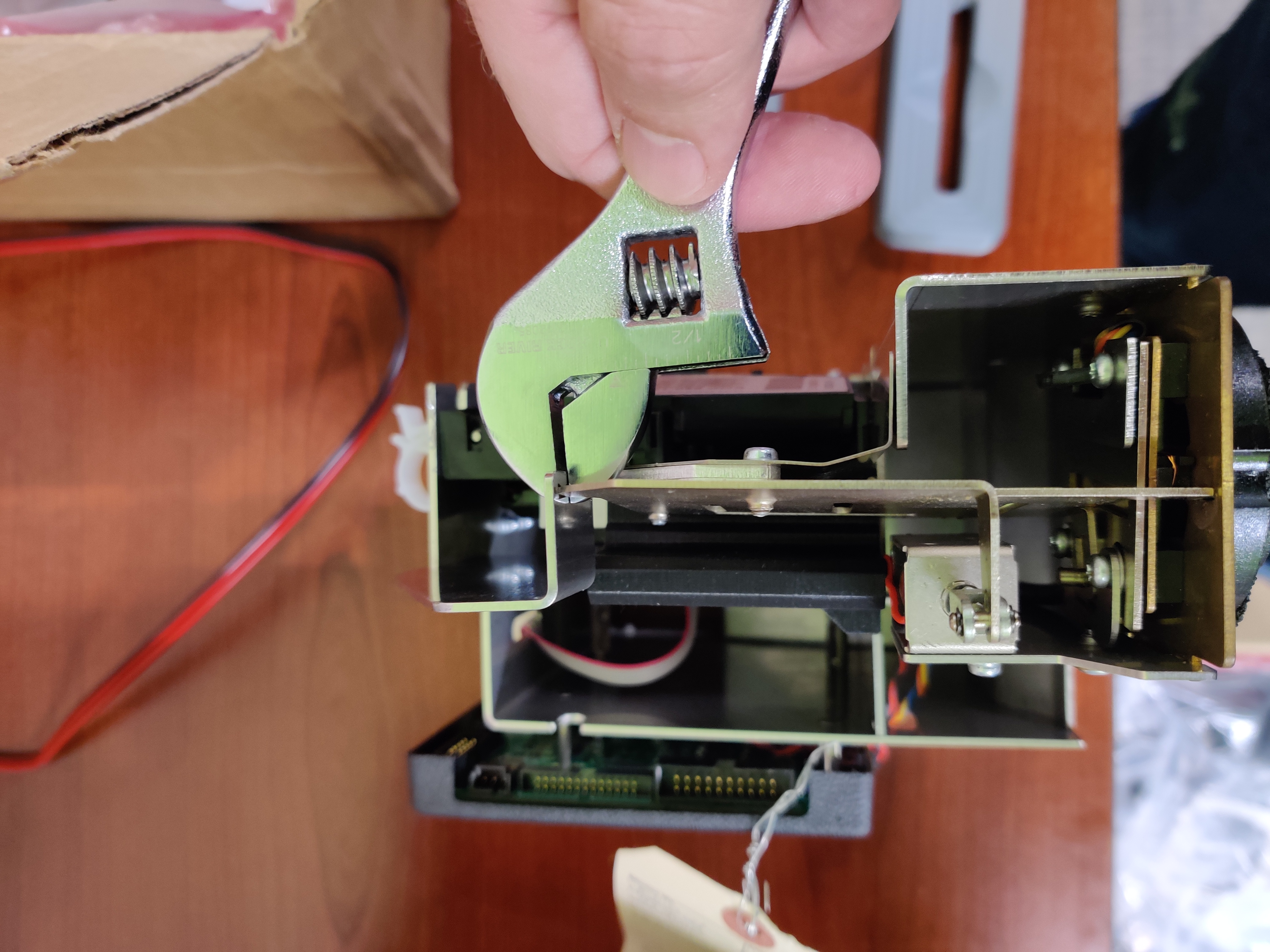

Attached is a picture of where to bend the chassis back to relieve the excess pressure. You only need to bend the flange back a little bit at a time to get the clearance needed. You can test by pressing the front of the coin system and manually flipping the antipin bridge. If you feel the resistance bend the flange back a little more as shown below:
